V-TAC 50kWh Hybrid Inverter Three Phase HIGH VOLTAGE 11861

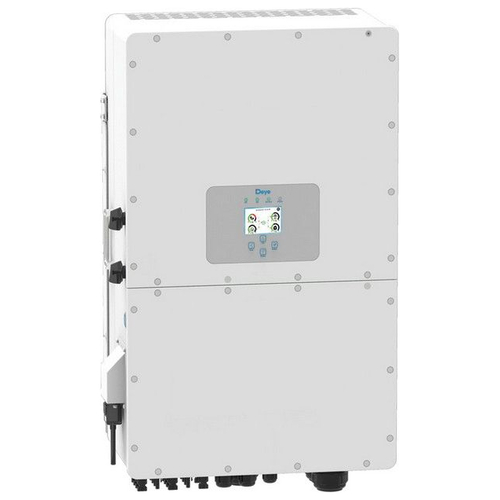

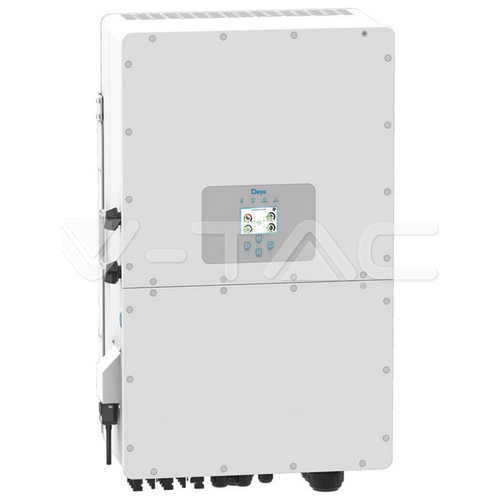

V-TAC 50kWh Hybrid Inverter Three Phase

Electrical Data
Current

• PV Input Current: 36+36+36+36A;
• Max. PV ISC (A): 55+55+55+55
• No.of MPP Trackers: 4

Wattage

• Max. Input Power: 65000W;
• Rated Output Power: 50000W;
• Max. Output Power: 55000W;

Voltage

• Start Voltage: 180V;
• Rated Input Voltage: 600;
• Full-load DC Voltage Range: 450-850V;
• MPPT Voltage Range: 150-850V;

Frequency50Hz / 60Hz

Power Factor0.8 lagging to 0.8 leading

Capabilities
IP RatingIP65

Working conditions-40~60°C, >45°C derating

Dimensions
Size527x894x294 mm

Product Data
Order code11861

Item Weight100 kg

Item Volume0.3821

Items per box1

Additional
Release Date18.12.2023

BrandV-TAC

Warranty10 years
