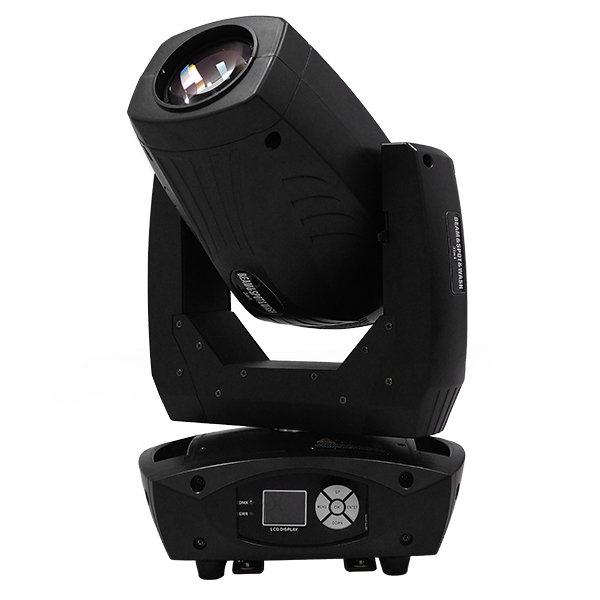

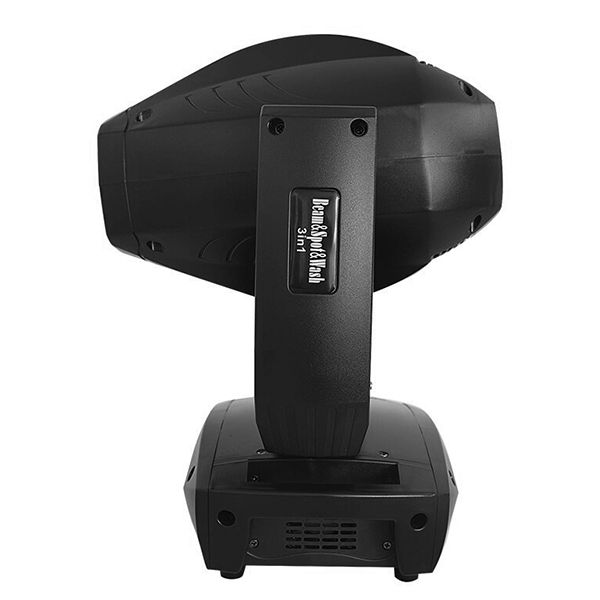

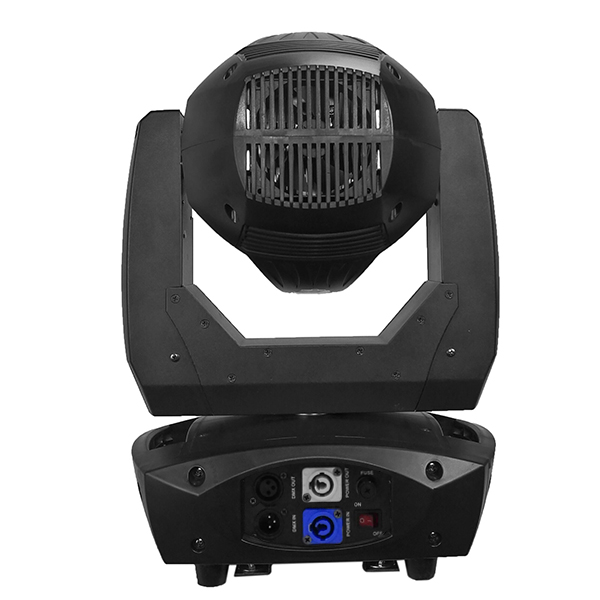

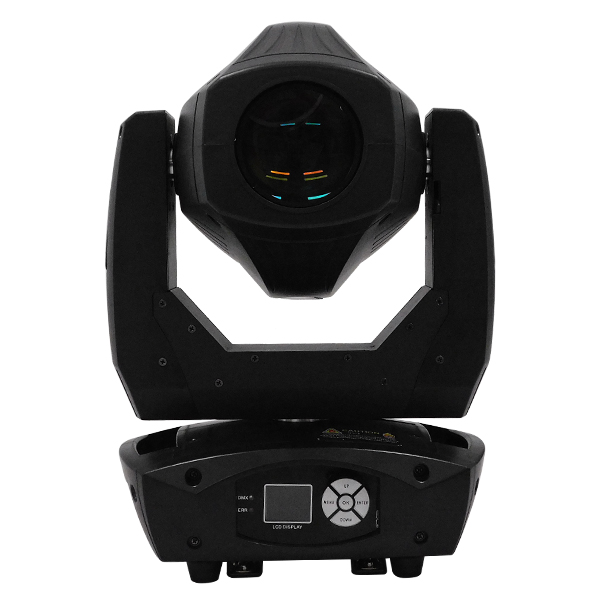

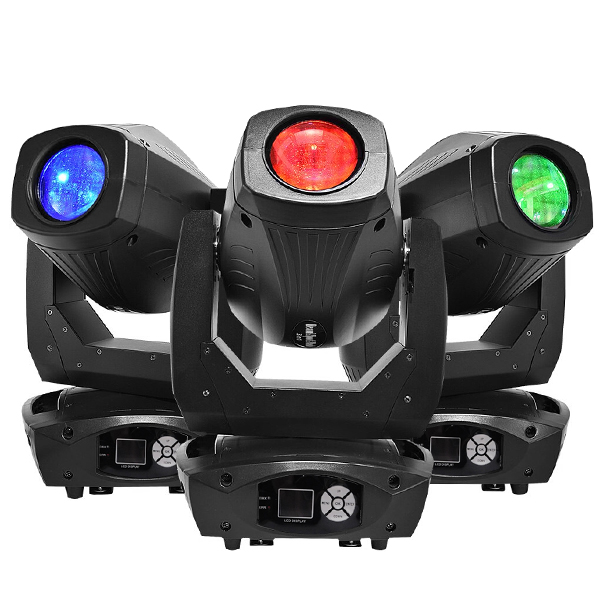

Κινούμενη Ρομποτική Κεφαλή Cyclop PRO 4in1 BEAM - WASH - SPOT - ZOOM 7°-21° 1*200 Watt White 7500K OSRAM LED RGBW 230V DMX512 GloboStar 51154

Κινούμενη Ρομποτική Κεφαλή Cyclop PRO 4in1 BEAM - WASH - SPOT - ZOOM 7°-21° 1*200 Watt White 7500K OSRAM LED RGBW 230V DMX512 GloboStar 51154



Features:

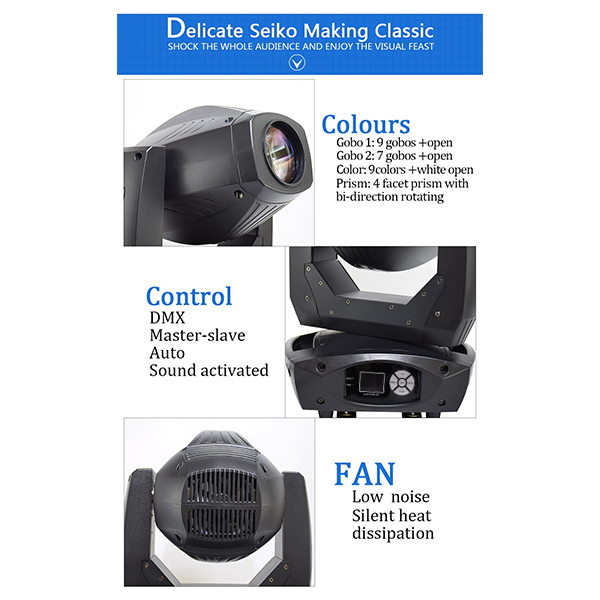

Product Code SKU: GloboStar 51154 Product Name: GloboStar Cyclop PRO 4in1 BEAM/WASH/SPOT/ZOOM Signal International DMX 512 Operation mode LCD screen and Button mode Effect  Rainbow Effect + Many Optionals Color One Color Wheel,9+Open and Half Color Effect Gobo

Static Gobo Wheel: 9 gobos + open, with rotation and running water effect

Rotation Gobo Wheel: 7 gobos+open

Frost With Frost Effect Prism

4 Facet Prism with Bi-Direction Rotating

Strobe effect Strobe Macro Control, 1-25 Times/Second with Pulse Effect Dimming 0-100% Mechanical Dimming, Accurate Dimming, Free Dimming Available, Strobe Macro Control available, Smooth Linear Dimmer Protection Over Heat Protection, Motor Protection IP Rate: IP20 Non Waterproof Movement

Pan Scan: Horizontal 540°+fine (16bit) Electric Correction

Tilt Scan: Vertical 270°+fine (16bit) Electric Correction

Lens

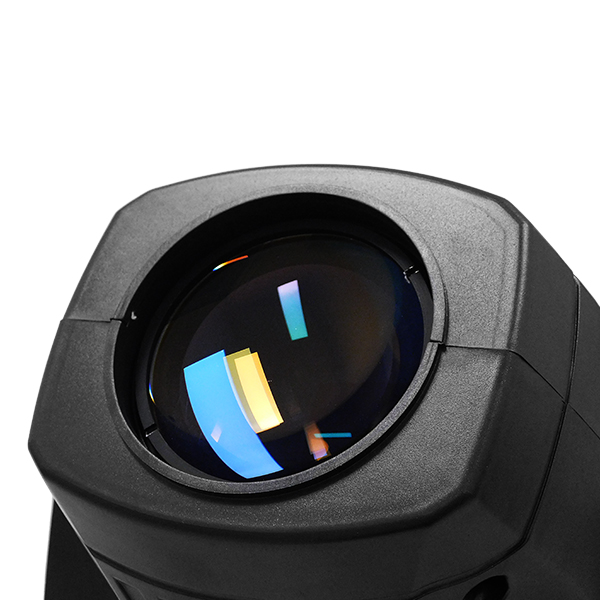

 Lens Optical System, Mechanical Focus, Beam Angle Zoom 7~21°

Technical Paremeters:

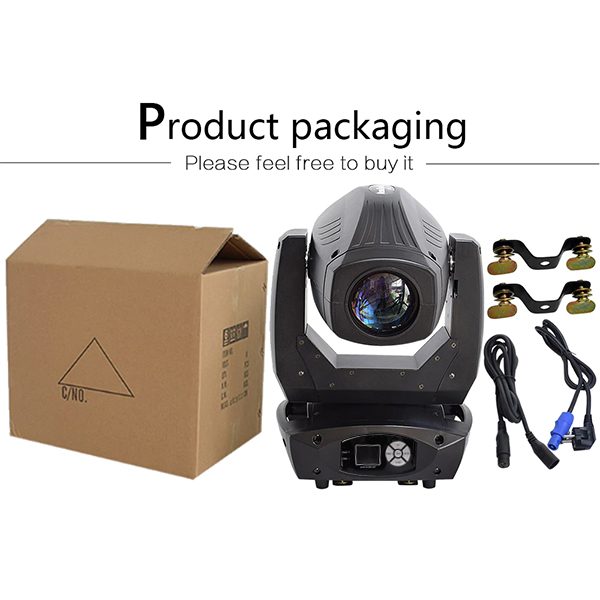

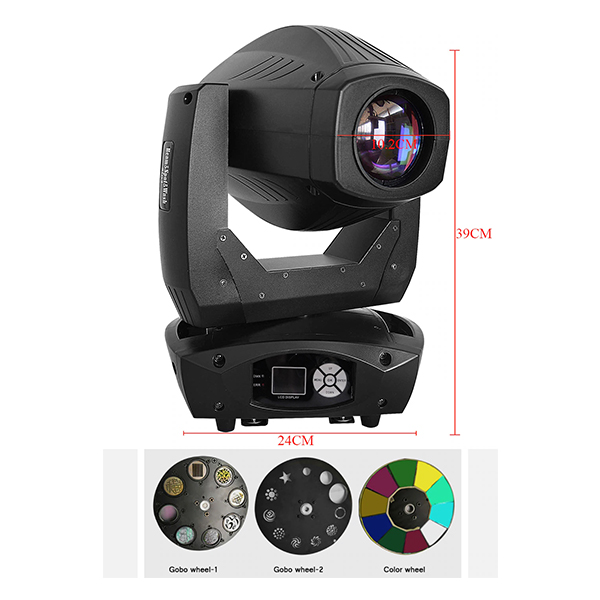

Voltage 100-240V, 50HZ-60HZ Total Rated power 300W Lamp 1*200 Watt White 7500k Osram LED Signal DMX 512 Channel 18 DMX512 Channels Motor 12pcs Cooling system 4 fans+ 1 blower Lens Yiling Optical Lens ( 5 pcs) Dimming 0-100% Mechanical & Auto Dimming , Free Dimming Strobe Strobe Macro Control, 1-25 Times/Second Size 34.3*23.9*53.7CM Packing size 46*46*58CM N.W 14.5kg G.W( Carton) 23KG

The channels:

CHANNEL

CHANNEL MODE - DMX LIBRARY

FUNCTION

0-255 DETAILS

1

PAN

0-255 PAN MOVEMENT

2

PAN FINE

0-255 PAN FINE

3

TILT

0-255 TILT MOVEMENT

4

TILT FINE

0-255 TILT FINE

5

PAN/TILT

0-255 PANT/TILT SPEED CONTROL FROM FAST TO SLOW

6

DIMMER

0-255 DIMMER FROM DARK TO BRIGHT

7

STROBE

0-3 No Function
4-99 Strobe from slow to fast
100-149 Pulse strobe from slow to fast
150-199 Thunder strobe from slow to fast
200-249 Random strobe from fast to slow
250-255 Light on

8

COLOR WHEEL

 0-19 Color 1 linear control
20-39 Color 2 linear control
40-159 No function
160-179 Color 9 linear control
180-199 Open linear control
200-226 Color wheel clockwise rotation from fast to slow
227-228 No function
229-255 Color wheel anti-clockwise rotation from slow to fast

9

STATIC GOBO WHEEL

0-4 Open
5-54 10 Static gobo(Each 5DMX value is a gobo)
55-154 10 Static gobo shake effect(Each 10DMX value is a gobo)
155-204 Static gobo wheel clockwise rotation from fast to slow
205-205 Stop
206-255 Static gobo wheel anti-clockwise rotation from slow to fast

10

ROTATION GOBO WHEEL

0-9 Open
10-79 7 Rotation gobo(Each 10DMX value is a gobo)
80-159 7 Gobo+Open shake effect(Each 10DMX value is a gobo)
160-206 Gobo wheel clockwise rotation from fast to slow
207-208 Stop
209-255 Gobo wheel anti-clockwise rotation from slow to fast

11

ROTATION GOBO ROTATES

0-127 Change position
128-191 Clockwise continues rotation from fast to slow
192-255 Anti-clockwise continues rotation from slow to fast

12

PRISM

0-127 no prism
128-255 prism

13

4 FACET PRISM ROTATION

 0-127 Change position
128-190 Clockwise continues rotation from fast to slow
191-192 Stop
193-255 Anti-clockwise continues rotation from slow to fast

14

FROST

0-127 no frost
128-255 frost effect

15

FOCUS

0-255 FOCUS

16

ZOOM

0-255 ZOOM

17

 MACRO EFFECT

0-50 No function
51-100 System detection
101-150 Auto 1
151-200 Auto 2
201-255 Sound activated

18

 RESET & MACRO

0-250 No function, 251-255 Reset within 5 seconds



Description:

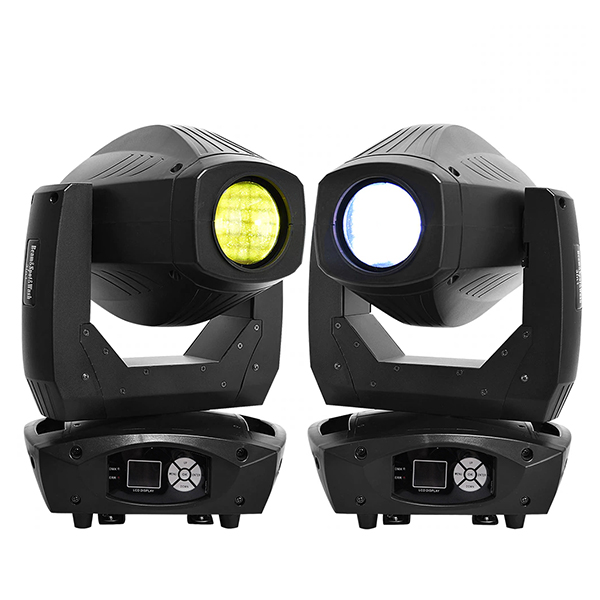

200W Cyclop PRO 4in1 Moving Head Beam Light using advanced design and processing technology, cast plastic casing with nice outlook, fully reflects the product's unique personality, the use of Osram 200 Watt LED high-brightness which features high brightness and stability.light mixing effect, particularly suitable for disco , television, dance halls, disco and nightclubs, and theater and other occasions.

200W Cyclop PRO 4in1 Head Beam Light's blending effect, the current of each lamp beads in strict accordance with the rated voltage and current control, It’s available independently controlled.
